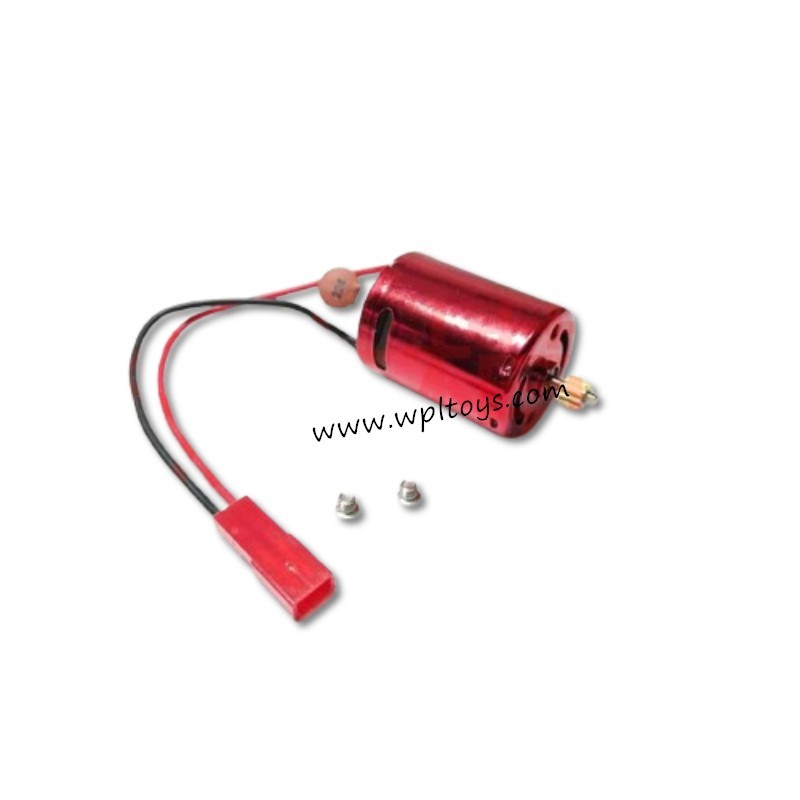

WPL D12 Upgrade PARTS Modified Violent 370 motor

About the WPL D12 Modified Violent 370 motor:

• Compatible with WPL D12 RC car.
• Can be installed in black or metal gearboxes; not compatible with transparent yellow gearboxes.
• With a standard 7.4V Li-ion battery, this high-speed 370 motor reaches 43,000 RPM, offering approximately 33% more speed and torque than the stock motor. It is recommended to upgrade the ESC (Electronic Speed Controller) when using this motor.

Note 1: If used with the stock circuit board, full throttle may cause the system to cut off and reboot due to insufficient power supply. If upgrading the ESC, monitor motor temperature carefully—overheating can burn out the motor.

Note 2: Some of the latest gearboxes with four internal support ribs may not fit a 370 motor. Be sure to check your gearbox before purchasing.

The motor comes pre-installed with a pressed-on pinion gear.

Motor Specifications:

• Diameter: 24.4mm
• Length (excluding shaft): 30.8mm
• Shaft: 2.0mm, red D-shaft or black round shaft
• Operating voltage: 5V–7.4V
• Rated voltage: 7.4V (ideal for dual 18650 batteries)

Note 3: Not suitable for use with 11.1V (3S) batteries. Although 11.1V can push no-load RPM over 60,000, the motor heats up quickly and may burn out. Use at your own risk.

Motor Performance (7.4V):

• No-load speed: 43,000 RPM
• No-load current: 2A
• Loaded speed: 29,304 RPM
• Loaded current: approx. 4–6A
• Weight: ~48g

Warning: This is a high-performance motor and must not be stalled (blocked from spinning). Doing so is like short-circuiting the battery, which can seriously damage both the motor and battery. If the motor stops rotating, cut power immediately to avoid damage.

Specification of WPL D12 1/10 2.4Ghz RC Crawler

• Motor Size: 260 brushed motor
• Rear Suspension: Leaf spring with solid axle
• Rear Axle: Plastic housing with internal metal gears
• Front Suspension: Independent suspension with adjustable camber, caster, toe angle, and ride height

Note: If you have any questions about the product, or can not find the accessories you want, please contact us by e-mail, we will reply to you as soon as possible!
